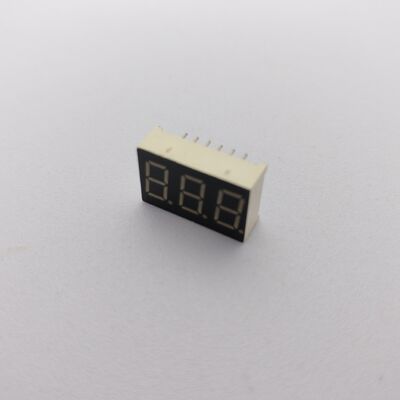

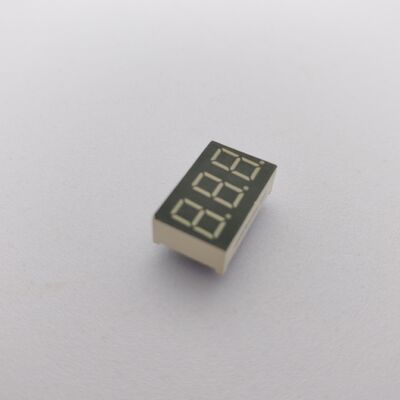

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator

Nazwa marki:	LIGHTBO
Numer modelu:	LB30361IR1A
MOQ:	1000
Cena £:	Negotiate
Warunki płatności:	T/T, Western Union
Zdolność do zaopatrzenia:	20000pcs/dni

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Shenzhen, Chiny

Orzecznictwo:

ISO9001&RoHS

biegunowość:

Wspólna anoda

Emitujący kolor:

ultra jasna czerwień

numer cyfrowy:

3 cyfry

CHARAKTER:

Epoksydka ochrony środowiska

Wyświetl życie:

50 000 godzin

Standard

Szczegóły pakowania:

EPE+karton

Możliwość Supply:

20000pcs/dni

Podkreślić:

red 3 digit 7 segment LED display

7 segment LED display for temperature indicator

0.36 inch humidity LED display

Opis produktu

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator

Product Description

Feature	Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator	Other Available Options (Customizable)
Part Number	LB30361IR1A	Can print your part number
Digit Number	3 digits	2, 3, 4, 5, or 6 digits
Digit Height	0.36 inch	0.25, 0.36, 0.39 ... up to 5.0 inch
Color	Red	White, Blue, Pure Green, Yellow-Green, Orange, etc.
Polarity	Common Anode	Common Cathode
Life Span	80,000 hours
Free Samples	Supported
Sample Lead Time	5-7 working days	15-20 days (tooling samples)
Production Lead Time	15-20 working days	Varies by order quantity
OEM/ODM	Supported	Based on your drawing or idea
LOGO Printing	Supported	Based on your drawing or idea
MOQ	1000 PCS	100-500 PCS accepted for first order

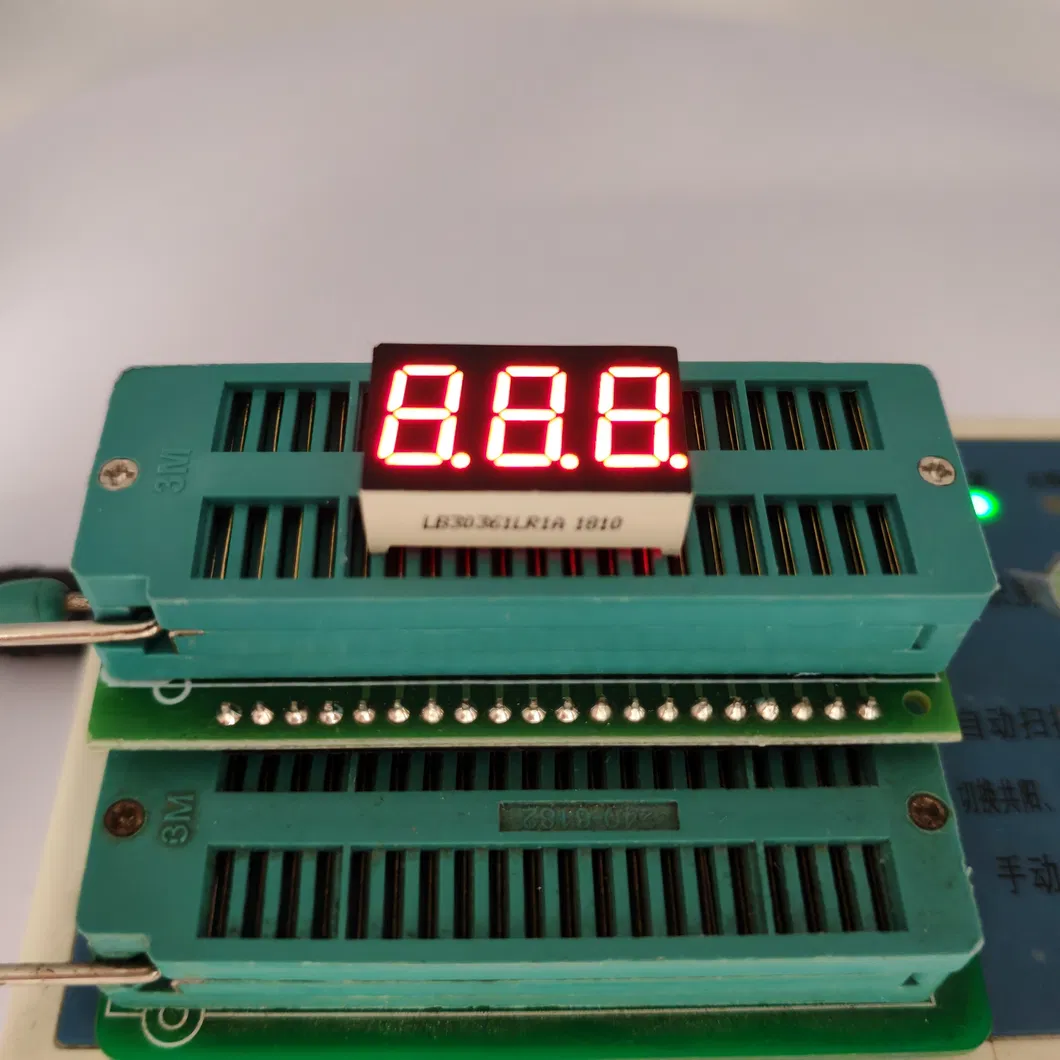

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 0

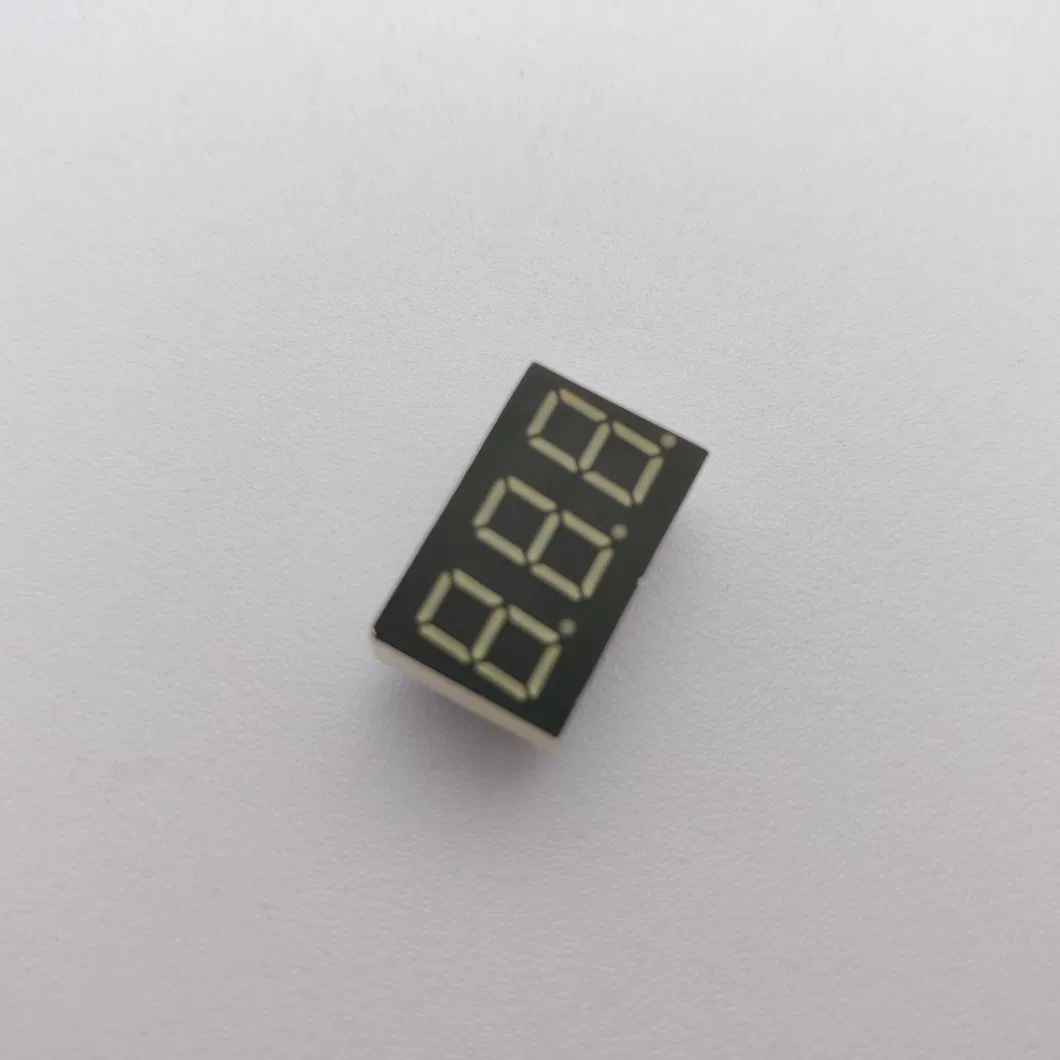

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 1

Product Parameters

Code:Yellow Green- J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Color:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Under the brand LIGHT-BO, Shenzhen Guangzhibao Technology Co., Ltd. is driven by a pursuit of excellence across the full spectrum of LED display solutions-from innovative R&D to precision manufacturing and global sales. Our 15+ years of OEM/ODM experience, supported by ISO 9001:2015 certification, is the foundation of our reputation for superior quality.

We are passionate about creating high-value, customized solutions that empower our clients with a clear market advantage. As your strategic partner, LIGHT-BO is dedicated to helping you optimize costs and achieve a stronger, more competitive positioning.

Products Applications

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 2

From everyday home appliances to essential HVAC systems and precision climate controls, our LED displays-spanning 7-Segment, Numeric, Dot Matrix, and fully Customized solutions-are engineered at the core. This wide applicability is a direct reflection of our meticulous attention to detail and unwavering pursuit of excellence.

Certifications

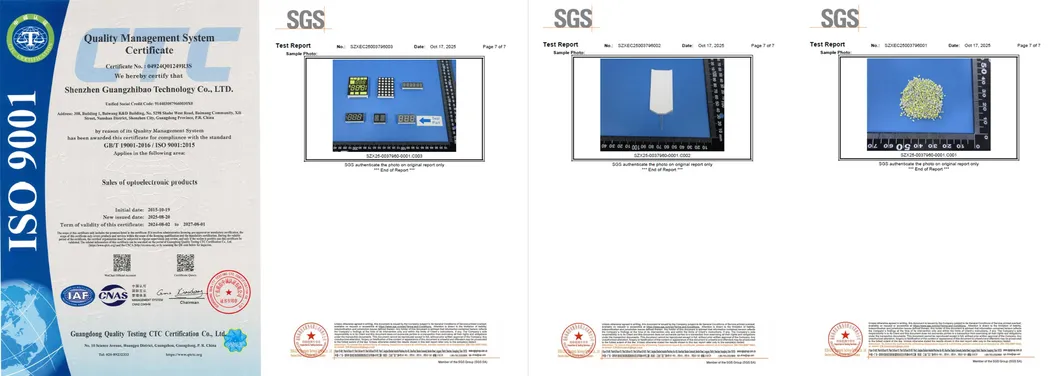

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 3

Office and Factory Overview

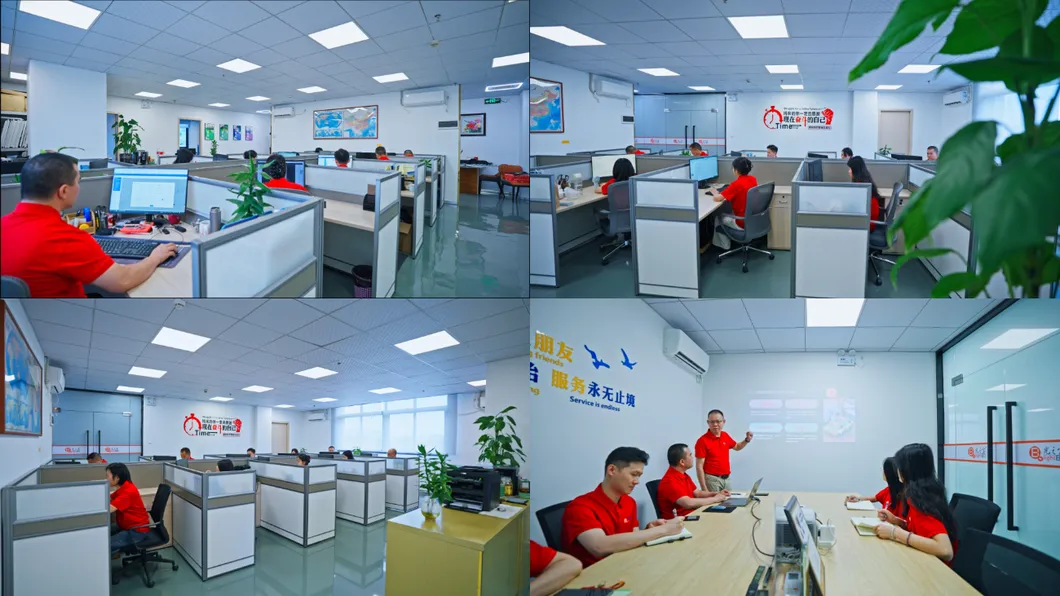

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 4

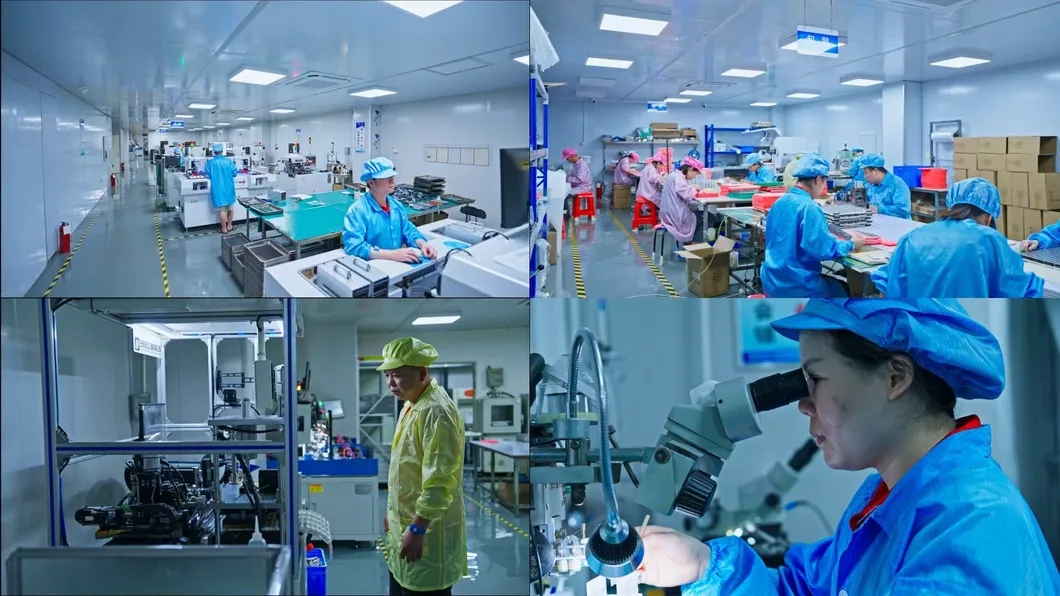

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 5

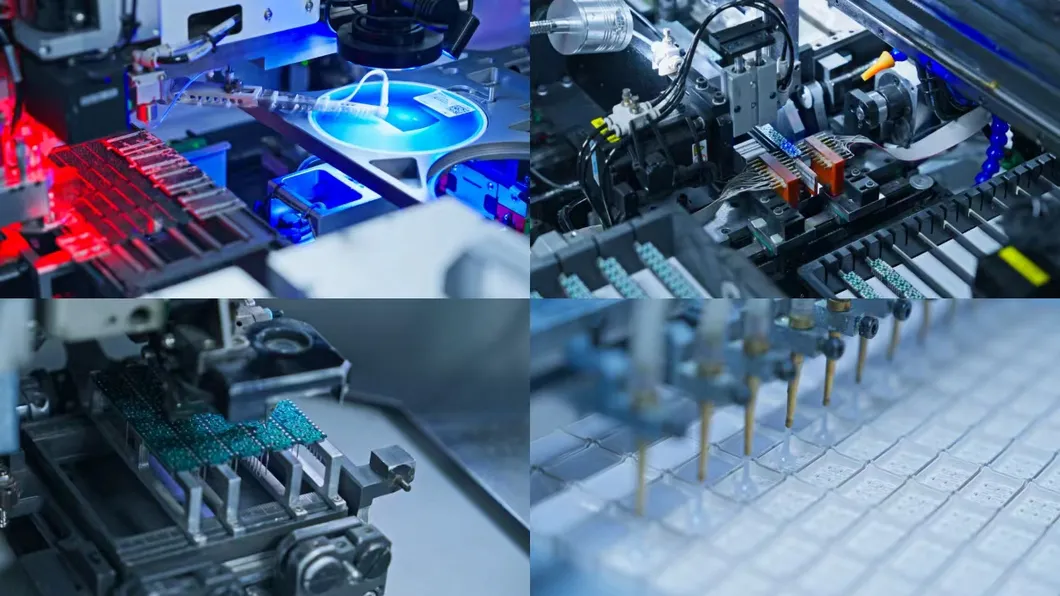

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 6

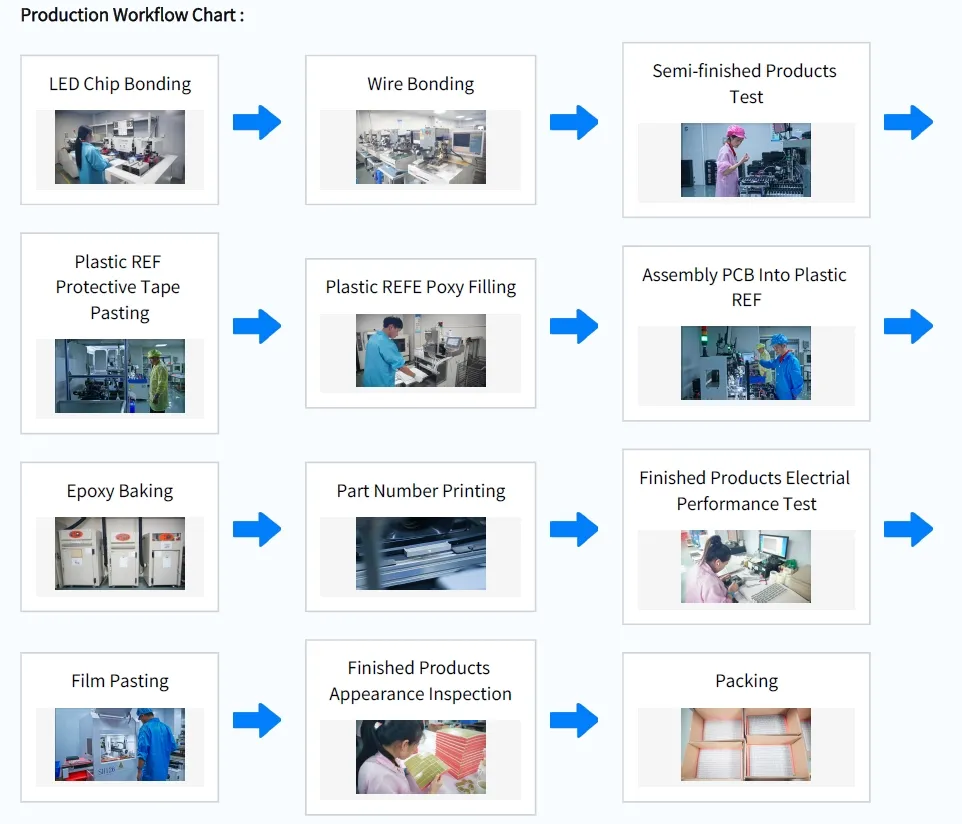

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 7

Company Exhibitions

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 8

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 9

Various transportation methods

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 10

Red 0.36" 3 Digit 7 Segment LED Display for Temperature/Humidity Indicator 11

FAQ

Q1 Are you trading company or manufacturer

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .

Q2 What is your main products

A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .

Q3 What is your MOQ

A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .

Q4 Before placing order, Can I get some samples for test

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5 How long is your delivery time

A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days .

Q6 What is your terms of payment

A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.

Q7 Can you quote me FOB prices

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.

Q8 How can I get your catalogue and price list

A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .

Q9 Can I negotiate the prices

A: Yes, we may consider discounts for bulk orders.

Q10 How much will the shipping charges be

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11 Can you do custom design products

A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.

Q12 If I send my design , can you make it for myself only ,and will not show it to any one else

A: Yes , we will not show it or sell to others without your authorization.

Q13 IWhat will be the samples lead time for customzied products

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .

Q14 What is the shipping methods

A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.

Q15 How do you ensure the quality of your products

A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
